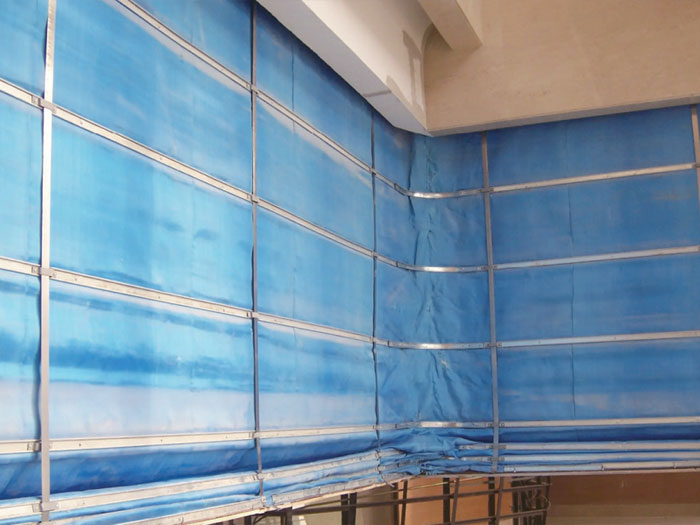

Inorganic fabric fireproof rolling shutter

1. The special grade inorganic folding fireproof rolling shutter is made by our company based on the intelligent characteristics of modern industrial and civil buildings, using special processing technology, and the product quality meets the requirements of GB1402-2005 standard.

2. Special grade inorganic folding fireproof rolling shutter refers to the use of inorganic fireproof insulation cloth as the curtain surface. The rolling shutter is driven by steel wire rope and pulley, and the curtain surface is raised and lowered by folding. The span can be infinitely extended without adding columns. It is used in irregular fireproof zones and has a good effect on maintaining the integrity of the internal space of the building area.

Applicable locations:

1. Fireproof partition design is suitable for large spaces, large areas, difficult environments, and special shapes.

2. Design installation shapes such as U-shaped, O-shaped, S-shaped, C-shaped, V-shaped, L-shaped, etc. according to on-site requirements.

3. Especially suitable for large-span and irregular space places, such as shopping mall escalators, shopping mall atriums, exhibition halls, airport waiting halls, large stage theaters, convention centers and other places with high construction difficulty.

Technical Specifications:

1. Fire resistance: greater than 3 hours.

2. Average backfire temperature: 36 ° C-50 ° C

3. Self weight (dynamic) descent speed: ≤ 9.5m/min

4. Curtain weight: 7.5kg/m2

5. Curtain surface smoke leakage: ≤ 0.10m3/(m2/min)

6. Motor power: 0.25kw to 0.75kw

7. Power supply: DC24VAC380V50HZ
